开发 React Uploads 桌面端上传组件

通过使用 Uploads 上传组件，实现文件上传，也可以使用上传组件的打包下载功能打包下载上传的文件。

设计思路

使用平台基于 Ant Design Upload 组件进行二次封装的 Upload 组件，来实现 Uploads 上传组件核心逻辑，基于自定义 Children 来增加“打包下载”按钮。给“上传”按钮之外的 dom 设置阻止事件冒泡，来取消“打开文件选择对话框”行为，设置“打包下载”按钮的下载逻辑。使用 css 设置上传组件中的上传区域在图片墙模式下的样式。

Ant Design 组件

使用方法如下

if (showBatchDownload) {
    if (uploadProps.listType == "picture-card") {
        otherProps.children =
            <div disabled={this.props.disabled} className={"ant-upload-list-item ant-upload-more-icon"}
                    onClick={this.handleClick}>
                <div className={"ant-upload-list-item-actions"}>
                    <Space>
                        <UploadOutlined className={"ant-upload-flag"}/>
                        <DownloadOutlined onClick={this.handleDownload}/>
                    </Space>
                </div>
            </div>
    } else {
        otherProps.children = <Space onClick={this.handleClick} className={"ant-upload-more"}>
            <Button className={"ant-upload-flag"}><UploadOutlined/>上传</Button>
            <Button onClick={this.handleDownload}><DownloadOutlined/>打包下载</Button>
        </Space>;
    }
}
return <Upload listType={"text"} {...uploadProps} {...otherProps}></Upload>;

开发过程

新建组件

创建 reactpccomp 组件包，创建 Uploads 组件，注意大小写。创建组件功能参考《创建组件包和组件》。

配置组件名称、图标和模板

打开组件模板文件 UI2/comp/reactpccomp/components/Uploads/designer/Uploads.xml，如下所示

<element name="reactpccomp:Uploads"
             tag-name="Uploads"
             text="上传"
             icon="Uploads.png"
             discriminate-condition="executeXpath(name()='reactpccomp:Uploads')"
             component-type="layout-container"
             design-view="web-designer">
    <events>
        <include path="$UI/wxsys/comps/reactContainer/commonConfig.xml#//react-events-pcx/*"/>
    </events>
    <templates>
        <template name="default">
            <![CDATA[
                <reactpccomp:Uploads xmlns:reactpccomp="$UI/comp/reactpccomp/components" >
                </reactpccomp:Uploads>
            ]]></template>
    </templates>
</element>
  • element 中的 text 是组件名称
  • element 中的 icon 是组件图标
    • 图片文件位于 UI2/comp/reactpccomp/components/Uploads/designer/img/Uploads.png
  • include 引用标准 W3C 事件，非组件事件。
  • template 中的代码是组件模板
    • 在页面添加组件后，模板是加在 w 文件中的代码

在组件面板中显示

打开组件面板配置文件 UI2/comp/reactpccomp/components/reactpccomp.components.xml，如下所示

<reg-info>
    <!-- 组件目录注册 -->
    <component-dirs framework="react">Uploads</component-dirs>

    <!-- 组件工具箱配置 -->
    <toolbox>
    </toolbox>

    <!-- 兼容旧端工具箱配置 -->
    <quickide-toolbox>
    </quickide-toolbox>

    <!-- 傻瓜式ide工具栏配置 -->
    <uixide-toolbox framework="react">
        <catalog name="定制" order="13">
            <item component-name="reactpccomp:Uploads" device="pcx"/>
        </catalog>
    </uixide-toolbox>

    <depend-css>
    </depend-css>
    <depend-js>
    </depend-js>
</reg-info>
  • catalog 中的 name 是组件分类名称
  • item 中的 device 属性声明组件所在端
  • item 中的 module 属性一般组件不需要，删除即可

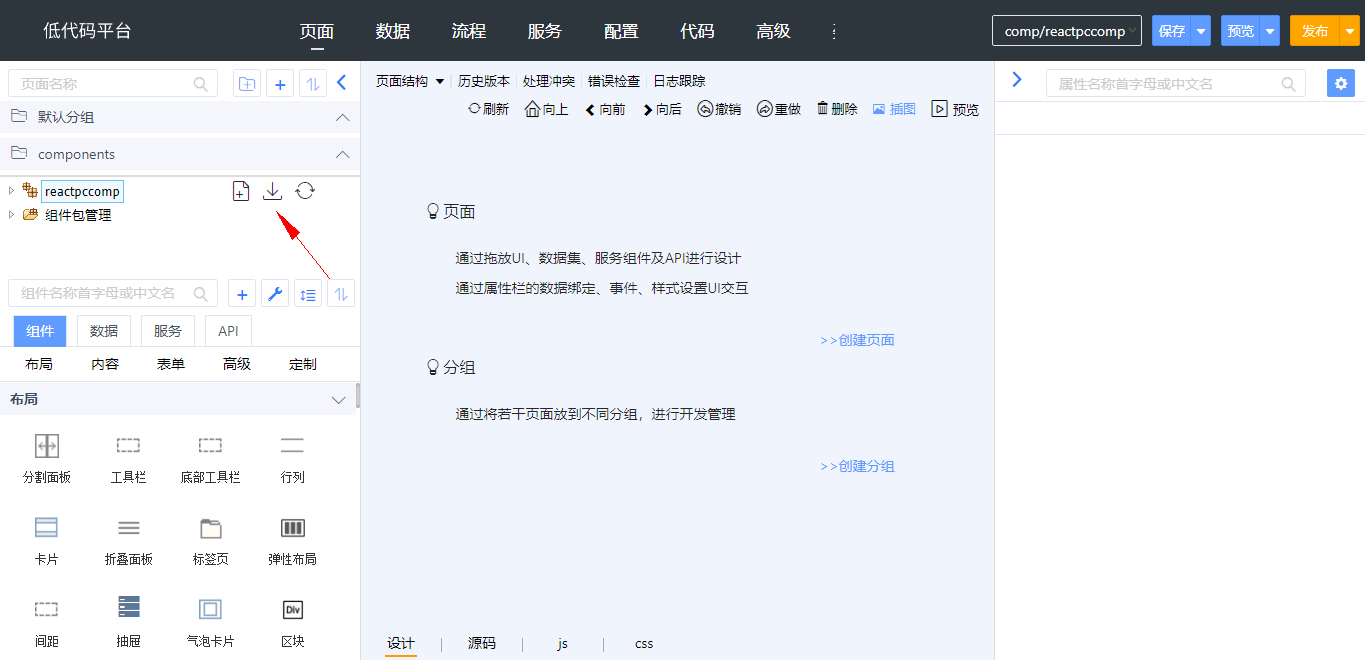

切换到 reactpccomp 开发端后，点击 reactpccomp 组件包右侧的“更新配置文件”按钮，如下图所示。

更新后，切换到桌面端或移动端，在组件面板的高级分类中会显示出该组件

在设计器中显示

在设计器 js 文件 (UI2/comp/reactpccomp/components/Uploads/designer/Uploads.js) ，引入样式文件，和设计时 js 文件。

require("css!./css/Uploads").load();
reactpccompBaseComponent.Uploads = require("babel!./Uploads.react");

打开组件设计时 css 文件 (UI2/comp/reactpccomp/components/Uploads/designer/css/Uploads.css) ，设置上传组件中的上传区域在图片墙模式下的样式，定义样式如下。

.ant-upload-wrapper.ant-uploads .ant-upload-list .ant-upload-list-item.ant-upload-more-icon .ant-upload-list-item-actions .anticon{
    width: var(--ant-font-size-lg);
    margin: 0 var(--ant-margin-xxs);
    font-size: var(--ant-font-size-lg);
    cursor: pointer;
    transition: all var(--ant-motion-duration-slow);
    color: black;
}

.ant-upload-wrapper.ant-uploads .ant-upload-list .ant-upload-list-item.ant-upload-more-icon:hover .ant-upload-list-item-actions .anticon {
    color: white;
}

.ant-upload-wrapper.ant-uploads .ant-upload-list .ant-upload-list-item.ant-upload-more-icon .ant-upload-list-item-actions {
    opacity: 0.5;
}

.ant-upload-wrapper.ant-uploads .ant-upload-list .ant-upload-list-item.ant-upload-more-icon:hover .ant-upload-list-item-actions {
    opacity: 1;
}

.ant-upload-wrapper.ant-uploads .ant-upload-list .ant-upload-list-item.ant-upload-more-icon {
    width: 100%;
    border: none;
}

设计时 js 文件，引入依赖的组件，完成组件设计时渲染。


define(function (require) {
    let {Button, Icon, Space} = antd;
    let {DownloadOutlined, UploadOutlined} = icons;
    let BaseComponent = require('babel!$UI/wxsys/comps/reactContainer/designer/BaseComponent');

    class UploadsPro extends BaseComponent {
        constructor(props) {
            super(props);
        }

        render() {
            let {Upload} = antdproBaseComponent;
            let {showBatchDownload = true,className="", ...otherProps} = this.props;
            let uploadProps = this.getUseProps("Upload", "upload", {});
            otherProps.className = className + " ant-uploads "
            if (showBatchDownload) {
                if (uploadProps.listType == "picture-card") {
                    otherProps.children =
                        <div disabled={this.props.disabled} className={"ant-upload-list-item ant-upload-more-icon"}>
                            <div className={"ant-upload-list-item-actions"}>
                                <Space>
                                    <UploadOutlined className={"ant-upload-flag"}/>
                                    <DownloadOutlined />
                                </Space>
                            </div>
                        </div>
                } else {
                    otherProps.children = <Space>
                        <Button className={"ant-upload-flag"}><UploadOutlined/>上传</Button>
                        <Button><DownloadOutlined/>打包下载</Button>
                    </Space>;
                }
            }
            return <Upload listType="text" {...uploadProps} {...otherProps} ></Upload>;
        }
    }

    return UploadsPro;
});

配置组件属性

打开组件 meta 文件 UI2/comp/reactpccomp/components/Uploads/Uploads.meta.json，定义属性，如下所示

{
    "Uploads": {
        "properties": {
            "bind:ref": {
                "type": "dataRef",
                "label": "绑定数据列",
                "editor": "dataRef",
                "required": "true"
            },
            "showBatchDownload": {
                "label": "显示打包下载",
                "type": "boolean",
                "default-value": "true"
            }
        }
    }
}
  • 在 properties 中定义属性
  • 所有属性都需要定义
  • 不显示的属性不定义 label
  • bind:ref 绑定数据集的某个字段

配置引用

通过使用 ext:use 特性，引用平台封装的 Upload 组件提供的属性。来减少组件元信息文件中的冗余配置，以达到简便开发目的。

{
    "Uploads": {
        "uses": {
            "upload": {
                "key": "upload",
                "componentName": "antdpro:Upload",
                "label": "上传配置",
                "editor-parameter": {
                    "ignore-properties": [
                        "bind:ref"
                    ]
                }
            }
        }
    }
}

在运行时显示

在组件运行时 js 文件 (UI2/comp/reactpccomp/components/Uploads/Uploads.react.js) 中，导入平台封装的 Upload 组件，以及 Reactpccomp 、 BaseComponent、Antd 的 Space|Button|message 和样式文件。代码如下

import hoistNonReactStatic from 'hoist-non-react-statics';
import React from 'react';
import BaseComponent from 'components/pcx/BaseComponent';
import Upload from "../../../antdpro/components/Upload/Upload.react";
import {Button, message, Space} from "antd";
import {DownloadOutlined, UploadOutlined} from '@ant-design/icons'
import "./css/Uploads.css"

  • BaseComponent 平台封装的基类。可获取操作数据的各种 Api。

    详见《组件运行时 JS 文件》。

  • 运行时样式文件，设置上传组件中的上传区域在图片墙模式下的样式。

.ant-upload-wrapper.ant-uploads .ant-upload-list .ant-upload-list-item.ant-upload-more-icon .ant-upload-list-item-actions .anticon {
    width: var(--ant-font-size-lg);
    margin: 0 var(--ant-margin-xxs);
    font-size: var(--ant-font-size-lg);
    cursor: pointer;
    transition: all var(--ant-motion-duration-slow);
    color: black;
}

.ant-upload-wrapper.ant-uploads .ant-upload-list .ant-upload-list-item.ant-upload-more-icon:hover .ant-upload-list-item-actions .anticon {
    color: white;
}

.ant-upload-wrapper.ant-uploads .ant-upload-list .ant-upload-list-item.ant-upload-more-icon .ant-upload-list-item-actions {
    opacity: 0.5;
}

.ant-upload-wrapper.ant-uploads .ant-upload-list .ant-upload-list-item.ant-upload-more-icon:hover .ant-upload-list-item-actions {
    opacity: 1;
}

.ant-upload-wrapper.ant-uploads .ant-upload-list .ant-upload-list-item.ant-upload-more-icon {
    width: 100%;
    border: none;
}
  • 定义 render 方法，代码如下：

let {showBatchDownload = true,className="", ...otherProps} = this.props;
let uploadProps = this.getUseProps("Upload", "upload", {listType: "text"});
otherProps.className = className + " ant-uploads "
if (showBatchDownload) {
    if (uploadProps.listType == "picture-card") {
        otherProps.children =
            <div disabled={this.props.disabled} className={"ant-upload-list-item ant-upload-more-icon"}
                    onClick={this.handleClick}>
                <div className={"ant-upload-list-item-actions"}>
                    <Space>
                        <UploadOutlined className={"ant-upload-flag"}/>
                        <DownloadOutlined onClick={this.handleDownload}/>
                    </Space>
                </div>
            </div>
    } else {
        otherProps.children = <Space onClick={this.handleClick} className={"ant-upload-more"}>
            <Button className={"ant-upload-flag"}><UploadOutlined/>上传</Button>
            <Button onClick={this.handleDownload}><DownloadOutlined/>打包下载</Button>
        </Space>;
    }
}
return <Upload listType={"text"} {...uploadProps} {...otherProps}></Upload>;
  • 给“上传”按钮之外的 dom 设置阻止事件冒泡，来取消“打开文件选择对话框”行为
handleClick = event => {
    let currentNode = event.currentTarget;
    let node = event.target;
    let getParentNode = (nodeName, node) => {
        while (node && node.nodeName.toLowerCase() != nodeName) {
            node = node.parentNode;
        }
        return node;
    }
    if (currentNode.classList.contains("ant-upload-more-icon")) {
        node = getParentNode("span", node);
    } else {
        node = getParentNode("button", node);
    }
    if (!node || (node && !node.classList.contains("ant-upload-flag"))) {
        event.stopPropagation()
    }
}
  • 给“打包下载”按钮设置下载逻辑
handleDownload = event => {
    if(this.props.disabled) return
    let files = this.getRefValue();
    if (!files) {
        message.error("请先上传附件");
        return;
    }
    let zipFileName = "多文件打包下载.zip";
    //调用storageapi前端自带接口实现打包下载
    fetch("/storage/batchStream?zipFileName=" + zipFileName, {
        headers: {'Content-Type': 'application/json'},
        method: 'POST', // 指定请求方法为POST
        body: files, // 将FormData对象作为请求体发送
        responseType: "blob"
    }).then(response => {
        if (!response.ok) {
            throw new Error('Network response was not ok');
        }
        return response.blob(); // 将响应转换为blob格式
    }).then(blob => {
        // 创建一个链接元素用于下载
        const url = window.URL.createObjectURL(blob);
        const a = document.createElement('a');
        a.style.display = 'none';
        a.href = url;
        a.download = zipFileName; // 指定下载文件的名称
        document.body.appendChild(a);
        a.click(); // 触发下载
        window.URL.revokeObjectURL(url); // 释放URL对象
        document.body.removeChild(a); // 移除链接元素
    }).catch(error => {
        console.error('There was a problem with the fetch operation:', error);
    });
}

调试组件

  • 切换到桌面端或移动端

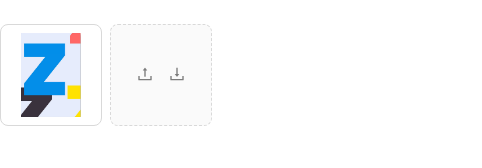

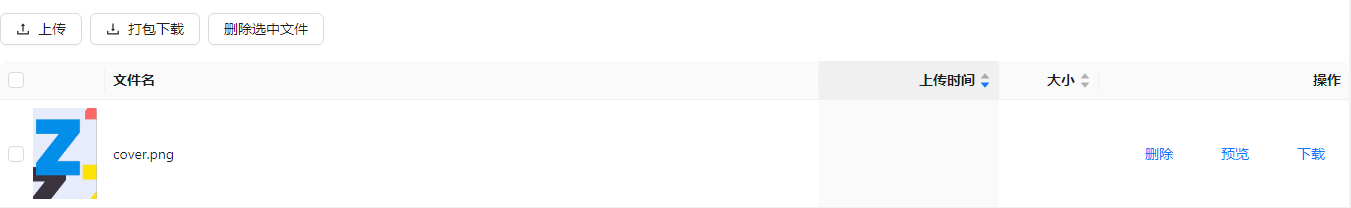

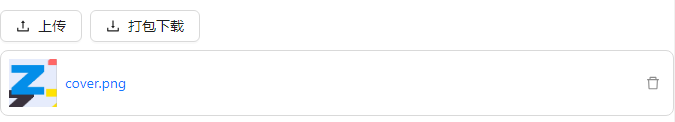

  • 在页面上添加上传组件、选择数据、设置上传
  • 保存、预览

发布组件

导出组件包

切换到 reactpccomp 开发端，点击 reactpccomp 组件包右侧的导出按钮，如下图所示，导出 reactpccomp.zip 文件

上传市场并审核

进入控制台，打开“组件管理-组件发布”功能，点击“发布组件”按钮，输入组件包信息，上传组件包文件，点击“提交审核”按钮

控制台管理员 system 进入控制台，打开“组件管理-组件管理”功能，在“状态”选择器中选择“审核中”或“更新审核中”，显示出提交待审核的组件，点击“审核”按钮，再点击“通过”按钮

打开应用，添加市场组件，可以看到上传组件

至此，上传组件开发完毕。
